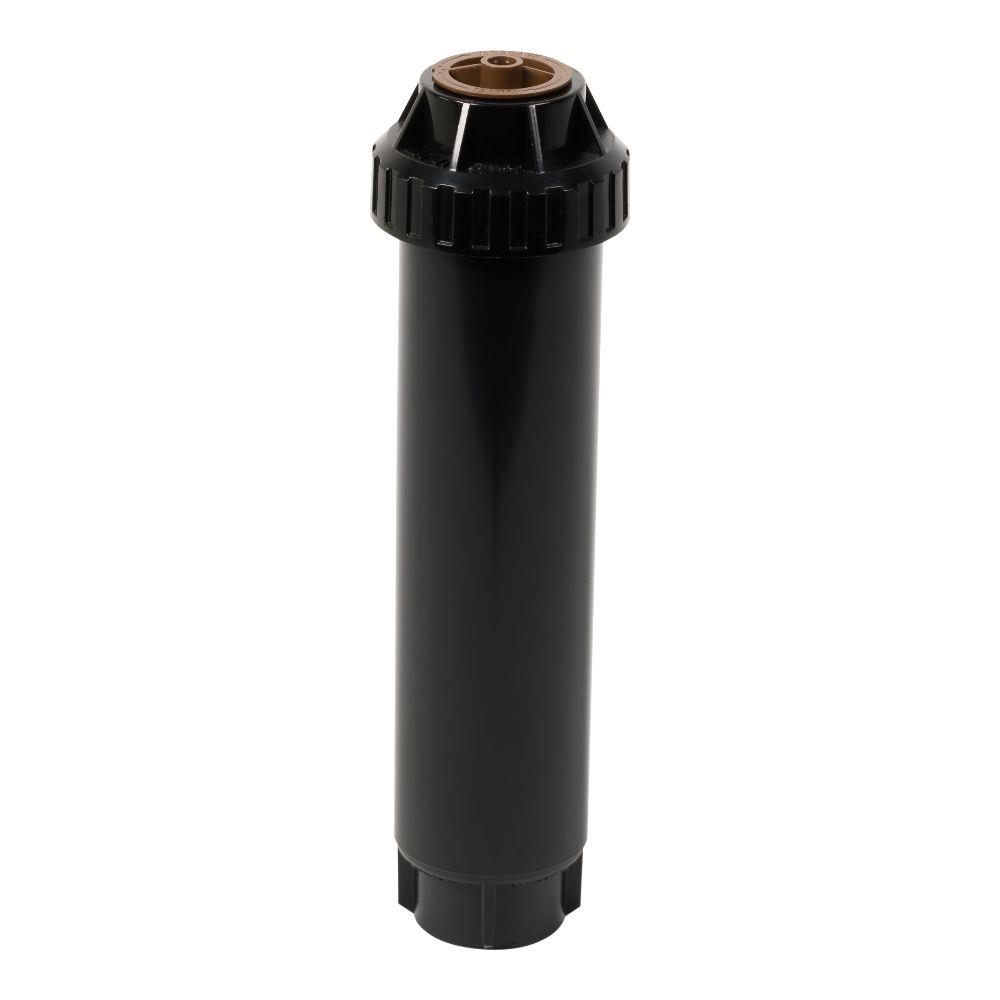

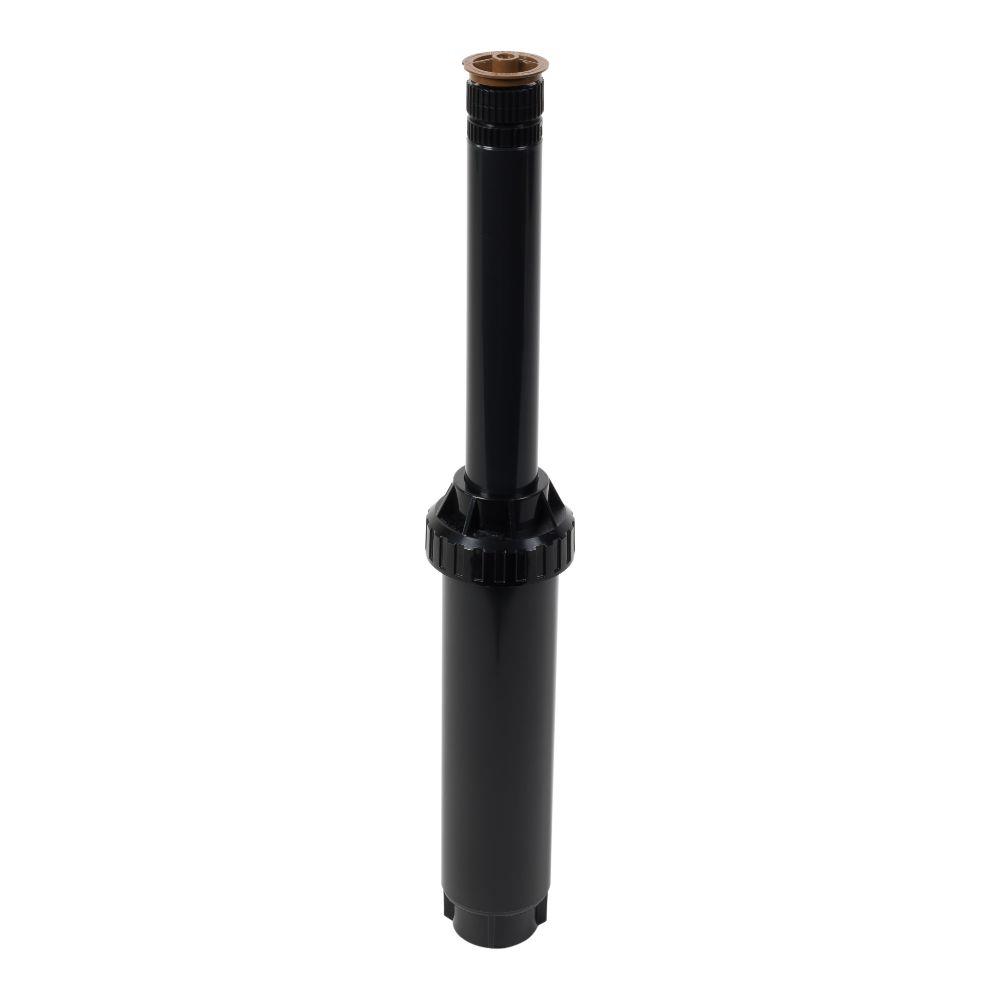

UNI-Spray Series Spray Heads
Compact and reliable spray heads for any application
Compact and reliable spray heads for any application
The UNI-Spray™ accepts all Rain Bird nozzles, including MPR, VAN and U-Series, making it an excellent choice for watering standard and irregular-shaped turf and shrub areas.
For added convenience, these reliable, compact spray heads can be shipped with or without pre-installed Variable Arc Nozzles (VANs) or High Efficiency Variable Arc Nozzles (HE-VAN) that are adjustable from 0° to 360° full-circle operation, saving hours of installation time, effort, and money.
Features
- Small exposed cover makes the unit virtually invisible for more attractive landscapes
- Constructed of durable materials including corrosion resistant stainless steel, assuring long product life even in high pressure or surge conditions
- Pressure-activated wiper seal prevents excessive flow-by and water waste and keeps debris from entering upon retraction
- Two-piece ratchet mechanism allows easy nozzle pattern alignment and provides added durability
- Three-year trade warranty
Specs
Flow-by: 0 at 10 psi (0.75 bar) or greater; 0.20 gpm (0.04 m³/h; 0.60 l/m) otherwise
Dimensions: 1/2″ (15/21) NPT female threaded inlet
Body Height: 5 7/8″ (14.9 cm)
Exposed Surface Diameter: 1 1/4″ (3.2 cm)

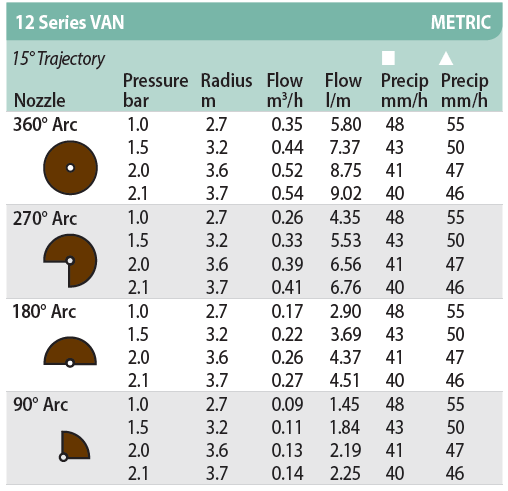

Operating Range (for pre-installed nozzle choices)
- Spacing:
- 8′ HE-VAN Series: 6 to 8 feet (1.8 to 2.4m)
- 10′ VAN and 10′ HE-VAN Series: 8 to 10 feet (2.4 to 3.0m)
- 12′ VAN and 12′ HE-VAN Series: 9 to 12 feet (2.7 to 3.7m)
- 15′ VAN and 15′ HE-VAN Series: 12 to 15 feet (3.7 to 4.6m)
- 18′ VAN Series: 14 to 18 feet (4.3 to 5.5m)
- Pressure: 15 to 70 psi (1.0 to 4.8 bar)
- Optimum pressure: 30 psi (2.1 bar)
- Adjustable nozzle arc range: 0° – 360°
