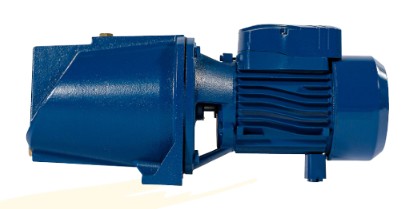

JSWM110, 1.10kW, 230V Selfpriming Jet Pump

Applications:

1. These self-priming cast iron jet water pumps are designed for optimal efficiency.


2. Suction capability of up to 6m depending on altitude.


3. Suitable applications include, water supply from shallow wells or storage tanks (surface / submerged).


4. System applications include domestic water supply and garden irrigation.

Operating Limits:

1. Maximum operating pressure: 8 bar


2. Maximum ambient temperature: +40°C


3. Liquid temperature: up to +60°C

Design Features:

1. Pump Body: Cast Iron


2. Impeller: Brass


3. Venturi and recirculation chamber: PPO (Poly Phenylene Oxide)


4. Pump shaft: Stainless Steel 304


5. Mechanical seal: NBR/Graphite/Ceramic
