1 – GENERAL DESCRIPTION
This specification is defining 2 ranges of products:

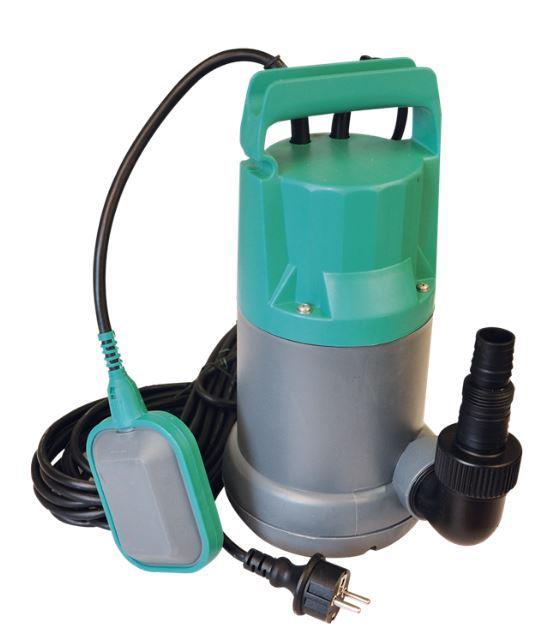

A range of submersible pump in plastic with centrifugal impeller, designed for the drainage of clear or slightly dirty water, for domestic use.
2 – RUNNING
2.1 Installation
– Electric supply: single-phase 230V ± 10 %, 50Hz
– Electric connection by schuko plug on the extremity of the 10m length cable.
– Pump in vertical position, horizontal delivery port:
INITIAL DRAIN: G1’’1/2
Pumps are delivered with elbow for vertical delivery port (see Appendix B).

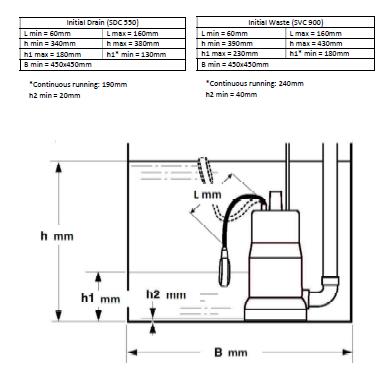

– Dimensions: see Appendix B.
2.2 Running
– Completely submerged up to 5 meters or out of water.
– Water temperature: +5°C to 35°C.
– Density of the fluid: 1 to 1.06
– PH of the fluid: 6 to 8
– Minimum pumping level:
INITIAL DRAIN: 20mm
– Free passage Ø:
INITIAL DRAIN: 5mm
– Permanent or intermittent running (number of starts – see chapter: Design features)
2.3 Materials (minimum quality level requested)
Pump:
Pump housing Pump housing
Impeller PA6 GF30
Shaft AISI 416
Motor housing Fe 370 galvanized
Lip seal NBR
Gasket NBR
Screws A2-70
Nut impeller A2-70
4.2 Design features
Isolation class 155.
Protection via a temperature sensor PTO (automatic reset) calibrated for such isolation class.
Protection class IP68 up to 5 meters immerged.
Maximum number of starts per hour : 60
Sound level: LpA < 70dBA
Electric supply cable, type H07RNF, length 10m, with European plug type Schuko at the extremity.
Automatic exit of the air from the pump in case of restarting after unpriming on an installation fitted with a non-return valve.
Phase displacement capacitor for single-phase motor
Capacitor value according to motor size:
– Nominal voltage 450 V alternative
– Tolerance ± 10 %
– Conforming to EN 60252-1 standard
– Lower limit temperature -25°C
– Higher limit temperature +85°C
– Relative humidity 75 %
– Lifetime 3,000 hours
– Safety class P0 with a plastic terminal box V0
– VDE 560-8 approval
– IMQ according to CEI 33-3 standard
5 – STANDARD, CERTIFICATION, LIFETIME
5.1 Directives and Standards
Low Voltage Directive 2006/95/CE and respective standard EN60335-2-41.
Electromagnetic Compatibility Directive 2004/108/EC and respective standards.
EN 61000-3-2
EN 61000-3-3
Basis standard on the sound emission EN ISO 20 361.
Float switch : standard EN 60730-2-16.
5.2 Certification
– EC declaration with testing results to prove the conformity to a.m. standards.
– ROHS and REACH
No requirements as regards ACS, WRAS or KTM approvals
