TECHNICAL DATA Flow rate:
Head:
65 mType of pumped liquid :
Clean, free from solid or abrasive substances,non-viscous, non-aggressive, non-crystallized and chemically neutral
Liquid temperature :
+40°CMaximum ambient temperature:
+50°CMaximum suction depth:
8 mMaximum operation pressure:
8 bar / 800 kPaMotor protection class:
IP X4Motor insulation class:
FImpeller material:
TechnopolymerSingle phase power input:
230 V 50 HzPower cord (m) and plug:
1,5 meters with power plugType of installation:
Fixed, vertically, horizontally or on the wall withspecial accessories (supplied separately)
Certification:

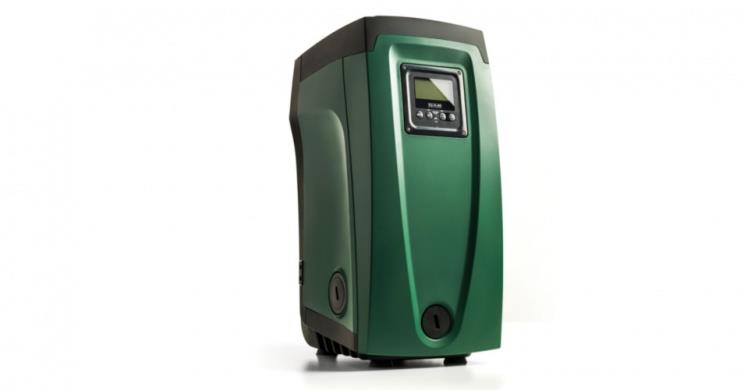

WRAS, ACSMulti-impeller self-priming electronic system for pressurization, rainwater reuse, drawing ground water, gardening and irrigation and agriculture and
irrigation in residential building service and commercial building service. Possibility to connect up to four Esybox together to create pressure units.
Adjustable display. Possibility of remote control thanks to the DConnect service (with DConnect Box supplied separately). The careful choice of
materials and the water-cooled motor make the pump particularly quiet, just 43 dB, suitable for installation even in living areas. Can be positioned
vertically, horizontally or on the wall with special accessories (supplied separately).
CONSTRUCTION FEATURES OF THE PUMP
Self-priming multi-impeller pump. 2-liter expansion vessel incorporated. Protective hull in sound-absorbing ABS. Technopolymer impellers. Integrated
flow and pressure sensors.
CONSTRUCTION FEATURES OF THE MOTOR
Motor cooled by the pumped liquid, stainless steel motor jacket. Motor shaft in AISI 303 stainless steel.
CONSTRUCTION FEATURES OF THE ELECTRONIC
Adjustable display. The variable frequency drive function saves energy and protects against water hammer. Integrated protections: protection from dry
running, amperometric and anomalous voltages, overtemperature, frost, anti-blocking and anti-cycling. Construction according to CEI 2-3 / CEI 61-69
(EN 60335-2-41). Guided procedure for the first start-up, easy configuration, possibility to display the alarm history. Wireless connection.
