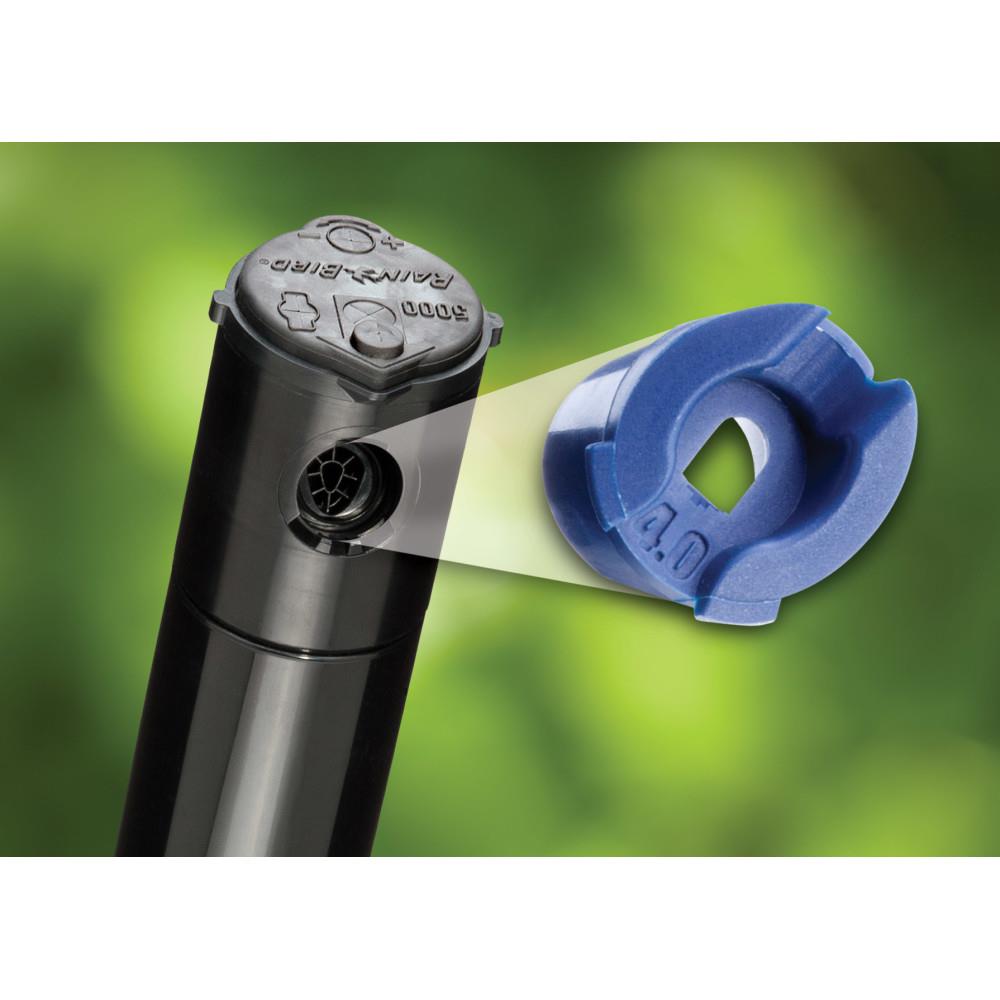

Rain Curtain Nozzle Technology

• Rain Curtain Nozzles standard on all 5000 Series Rotors



  • Large water droplets for greater wind resistance


  • Effective close-in watering


  • Even distribution over the entire radius

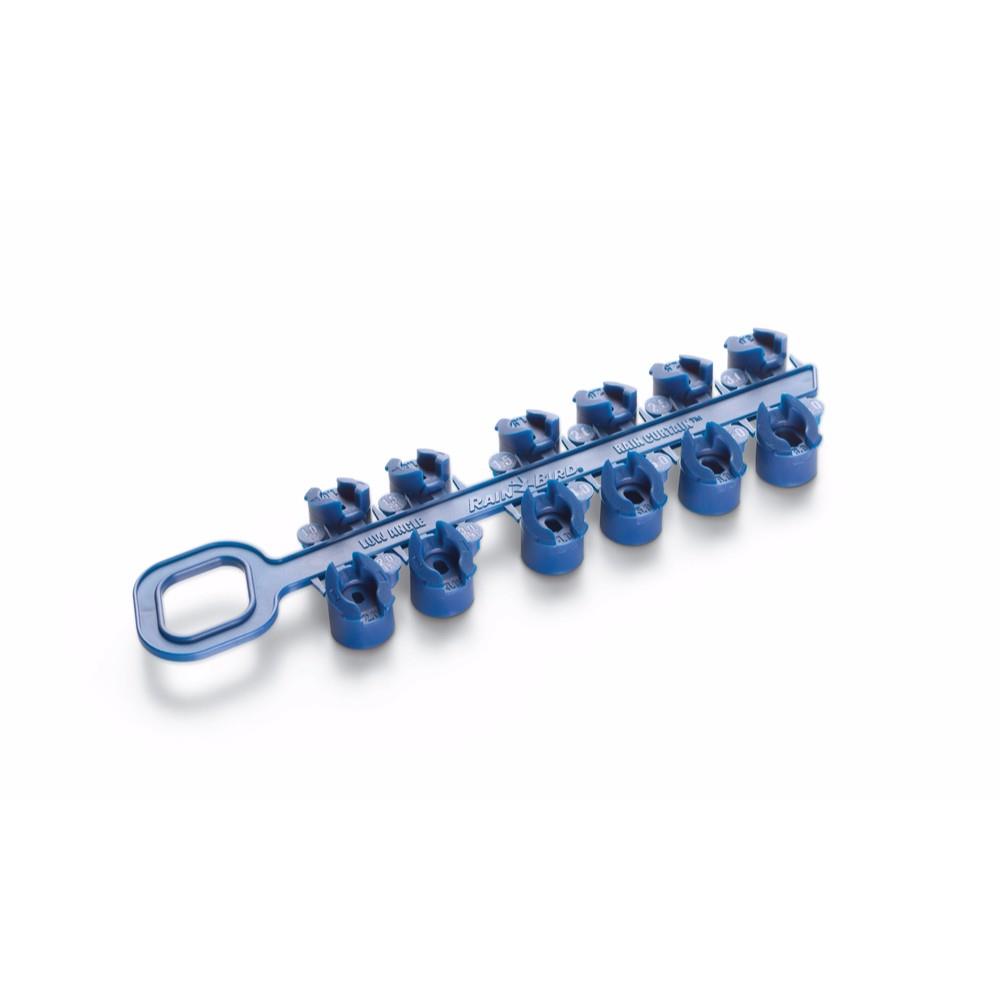

• Tree of nozzles including four low angle (angle of trajectory 10°) and eight standard angle Rain Curtain Nozzles (angle of trajectory 25°) provides 25′ to 50′ (7.6m to 15.2m) distance of throw


• Self-aligning nozzles

Installation and Maintenance

• Slip clutch mechanism for quick adjustment on installation


• Faster maintenance with a new self-cleaning arc adjustment screw


• The 5000 Plus features a flow shut-off device to stop the flow of water to a particular head while the system is still in operation


• Top-adjust arc adjustment requiring only a flathead screwdriver


• Radius adjustment screw allows up to 25% radius reduction without changing nozzles

Design Solutions

• 5000 in 4″, 6″ and 12″ available in shrub or in stainless steel


• 5000 Series 4″ and 6″ models available in stainless steel


• Award-winning MPR nozzle set simplifies design and installation by providing matched precipitation from 25′ to 35′ (7.6 to 10.7m)


• Standard rubber cover for extra protection. 5000 Plus Series features a green cover while the 5000 Series features a black cover


• 40-360° arc rotation and reversing full-circle rotation in one. (A non-reversing full-circle only unit is also available)


• True 4″ (10 cm), 6″ (15.2 cm) and 12″ (30.5 cm) pop-up (measured from the cover to the nozzle

Durability

• Heavy-duty cover assembly for extra durability in residential or commercial applications


• Heavy-duty retract spring assures positive pop-down


• Pressure-activated triple-blade multi-function wiper seal protects internals from debris and assures positive pop-up and retraction


• Additional O-rings and seals for extra protection in “gritty” water


• Five-year trade warranty.

Options

• Stainless steel riser helps deter vandalism on public turf areas (4″ and 6″ models only)


• Pre-installed Rain Curtain Nozzle on most popular 5000 and nozzle combinations


• Seal-A-Matic (SAM) check valve holds up to 7 feet (2.1m) of elevation change to prevent puddling and erosion caused by low head drainage


• Purple cover for easy identification of non-potable systems


•


  Specs






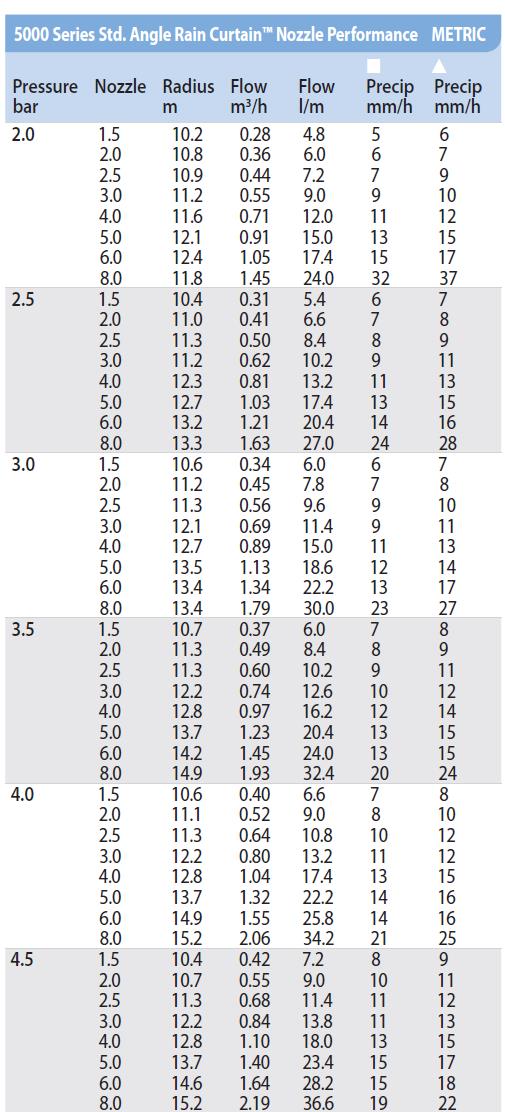

  Operating Range






  • Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h)


  • Radius: 25 to 50 feet (7,6 to 15,2 m)


  • Radius may be reduced up to 25% with radius reduction screw


  • Pressure: 25-65 psi (1,7 to 4,5 bar)


  • Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)




  Specifications






  • 3/4″ (20/27) NPT female bottom threaded inlet


  • Reversing full and part circle adjustment 40° – 360°


  • Full circle only adjustment 360°




  Dimensions






  • Pop-up height: Shrub; 4″ (10,2 cm); 6″ (15,2 cm); 12″ (30,5 cm)


  • Overall body height: Shrub: 7 3/4″ (19,7cm) 4″: 7 3/8″ (18, 5 cm); 6″: 9 5/8″ (24,5 cm); 12″: 16 7/8″ (42,9 cm)


  • Exposed surface diameter: 1 5/8″ (4,1 cm)







  Note: Pop-up height measured from the cover to the nozzle. Overall body height is measured popped down




  Optional PRS Feature






  • In-stem pressure regulator (PRS) reduces operating pressure to 45 psi (3,1 bar) for optimal nozzle performance


  • PRS saves water by:



    • Eliminating head-to-head pressure variations


    • Eliminating misting due to high pressure


    • Improving nozzle distribution uniformity by operating the nozzle at optimum pressure


  • Maintenance-free design can be easily retrofitted into existing 5000/5000 Plus, T-Bird™ and Hunter® PGP™ (using UPG model) rotor cases without digging up the entire body


  • Pressure: 25-75 psi (1,7 to 5,2 bar)
