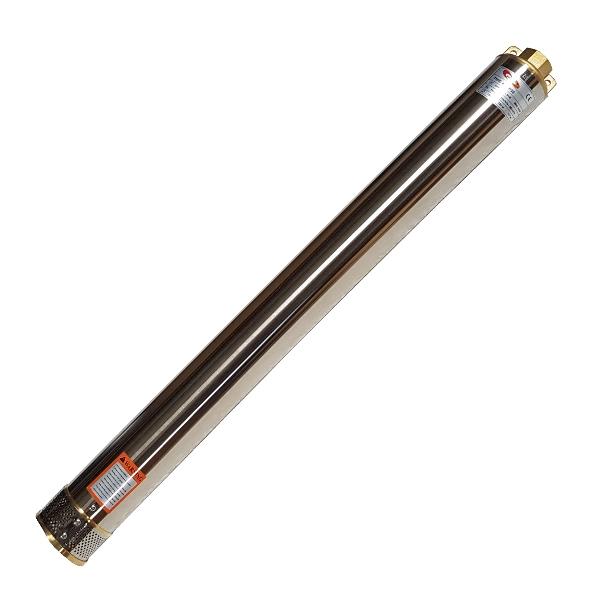

4SD2/28 Borehole Submersible Pump End Only 1.5KW
The Hurricane 4SD2/28 borehole submersible pump end requires a 1.5Kw submersible motor to drive it and is capable of delivering up to 10L/min at a depth of 192m.
It can be connected to either 220V single phase 1.5KW borehole submersible motor or a 380V three phase 1.5KW motor.
Description
The Hurricane 4SD2/28 borehole submersible pump end requires a 1.5Kw submersible motor to drive it and is capable of delivering up to 10L/min at a depth of 192m.
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10.16cm)
Motor & Pump
Single Phase : 220V – 240V 1.5KW 2HP / 50Hz or
Three Phase : 380V – 415V 1.5KW 2HP/ 50Hz
Equip with either a standard (manual) or an automatic control box 1.5KW 2HP (water level sensors)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 1.5KW
- Power : 2HP
- Outlet : 32mm
- Pump Diameter : 100mm
- Pump Length : 944mm
- Pump Weight : 8.1KG
