1800 Series Spray Heads
The #1 Irrigation Spray Head in the World
The #1 Irrigation Spray Head in the World
Installed in parks and backyards across the globe, Rain Bird’s 1800 Series is the #1 commercial-grade irrigation spray head brand in the world.
Chosen for its reliability, heavy-duty materials, and versatility, the 1800 Series offers a broad selection of pop up heights and nozzle combinations for watering shrubs, small lawns, and irregularly shaped planting areas.
All models feature Rain Bird’s patented pop-up mechanism with heavy-duty stainless steel spring for dependable out-of-sight retraction, plus an exclusive co-molded wiper seal for unmatched resistance to grit, pressure, and extreme environments.
Features
- Co-molded wiper seal provides unmatched resistance to grit, pressure and the environment
- Constructed of time-proven UV-resistant plastic and corrosion-resistant stainless steel parts, ensuring long product life
- Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types
- Two-piece ratchet mechanism allows easy nozzle pattern alignment and provides added durability
- Five-Year Trade Warranty
Specs
The 1800 Series accepts all Rain Bird spray nozzles.
- Flow-by: 0 gpm at 8 psi (0.6 bar) or greater; 0.10 gpm (0.02 m³/h; 0.36 l/m) otherwise
Operating Range
- Spacing: 2.5 to 24 feet (0.8 to 7.3m)*
- Pressure: 15 to 70 psi (1.0 to 4.8 bar)
Dimensions
- ½” (15/21) NPT female threaded inlet
- Models and height:

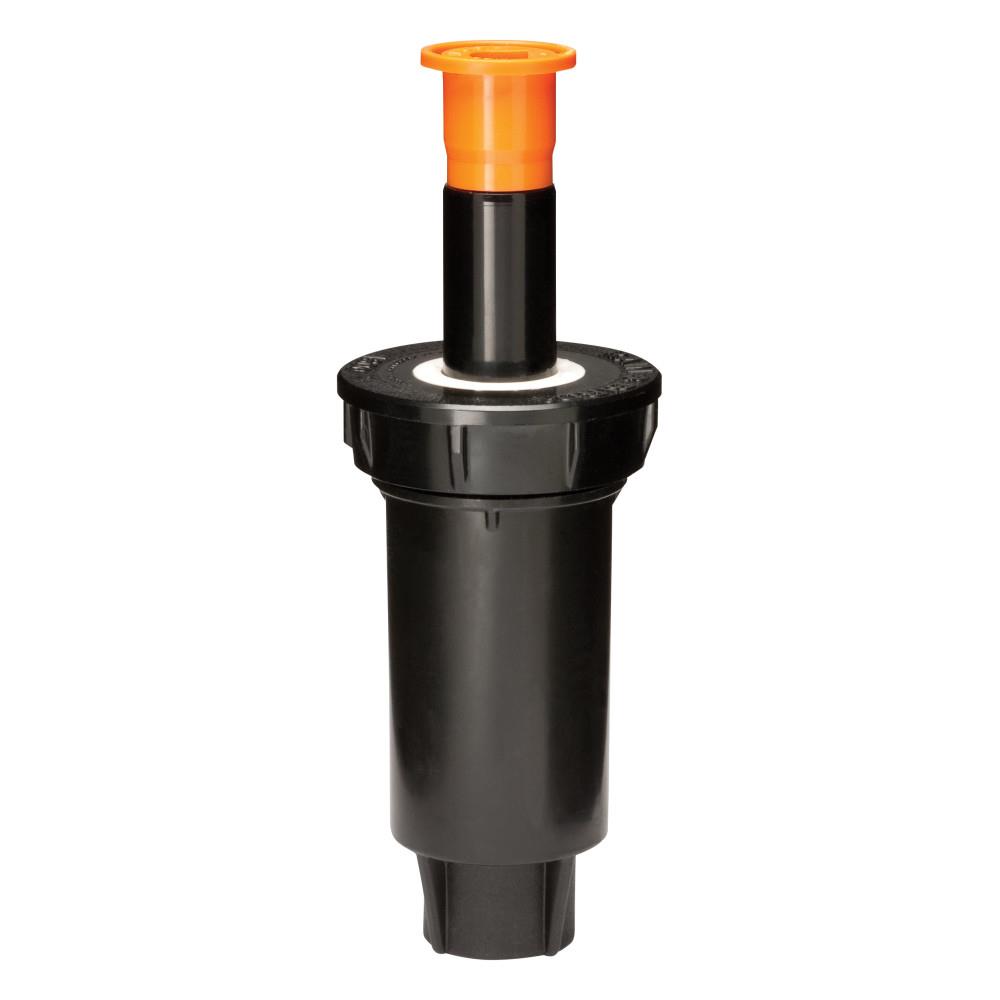

- 1802: 4″ (10.2 cm) body height; 2″ pop-up height (5.1 cm)
- 1804: 6″ (15.2 cm) body height; 4′ pop-up height (10.2 cm)
- 1806: 9 3⁄8″ (23.8 cm) body height; 6″ pop-up height (15.2 cm)
- 1812: 16″ (40.6 cm) body height; 12″ pop-up height (30.5 cm)
- Exposed surface diameter: 2¼ ” (5.7 cm)
* 2.5 to 15 feet with standard Rain Bird Spray Head Nozzles (SQ, U-Series, HE-VAN); 8 to 24 feet with Rain Bird Rotary Nozzles
